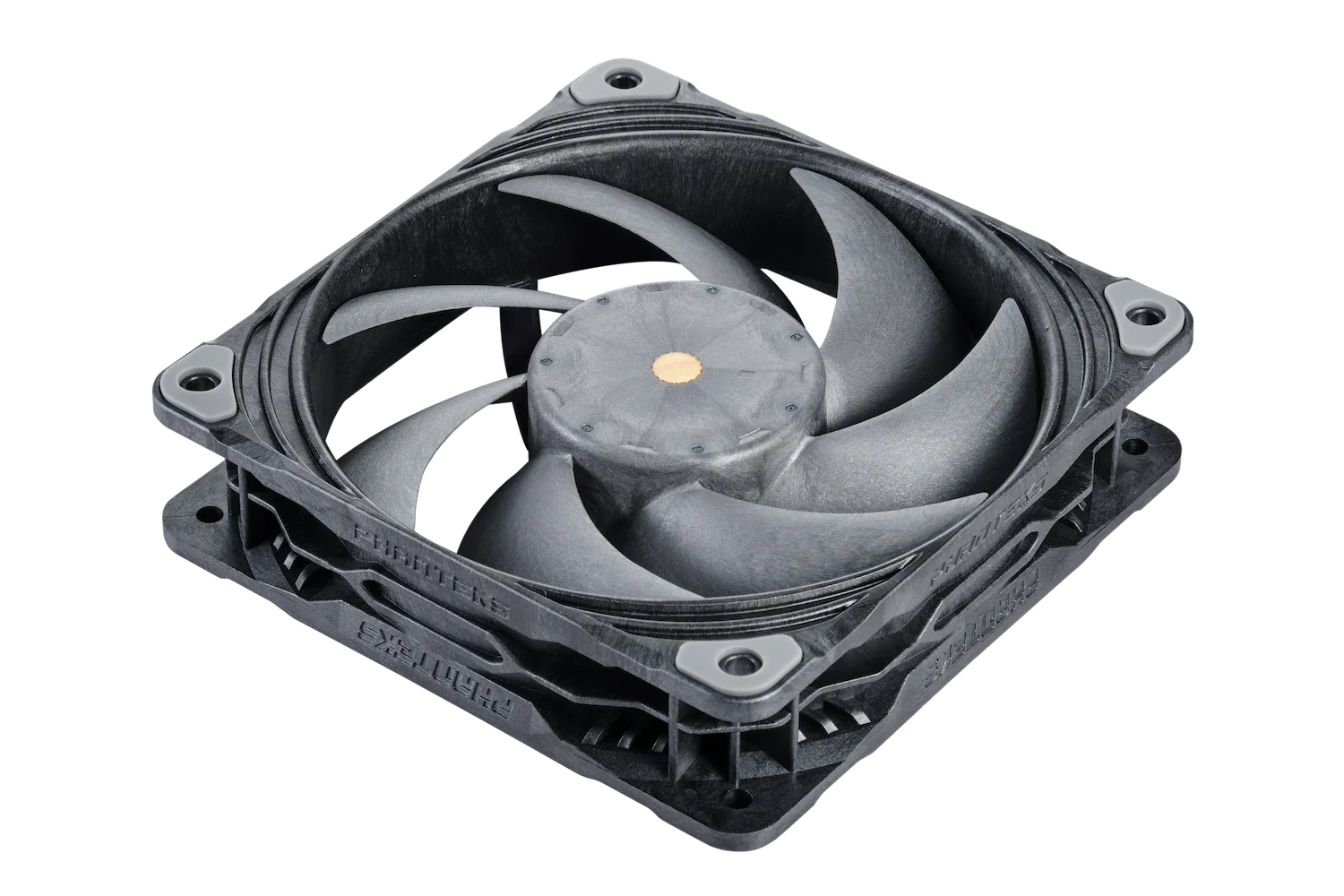

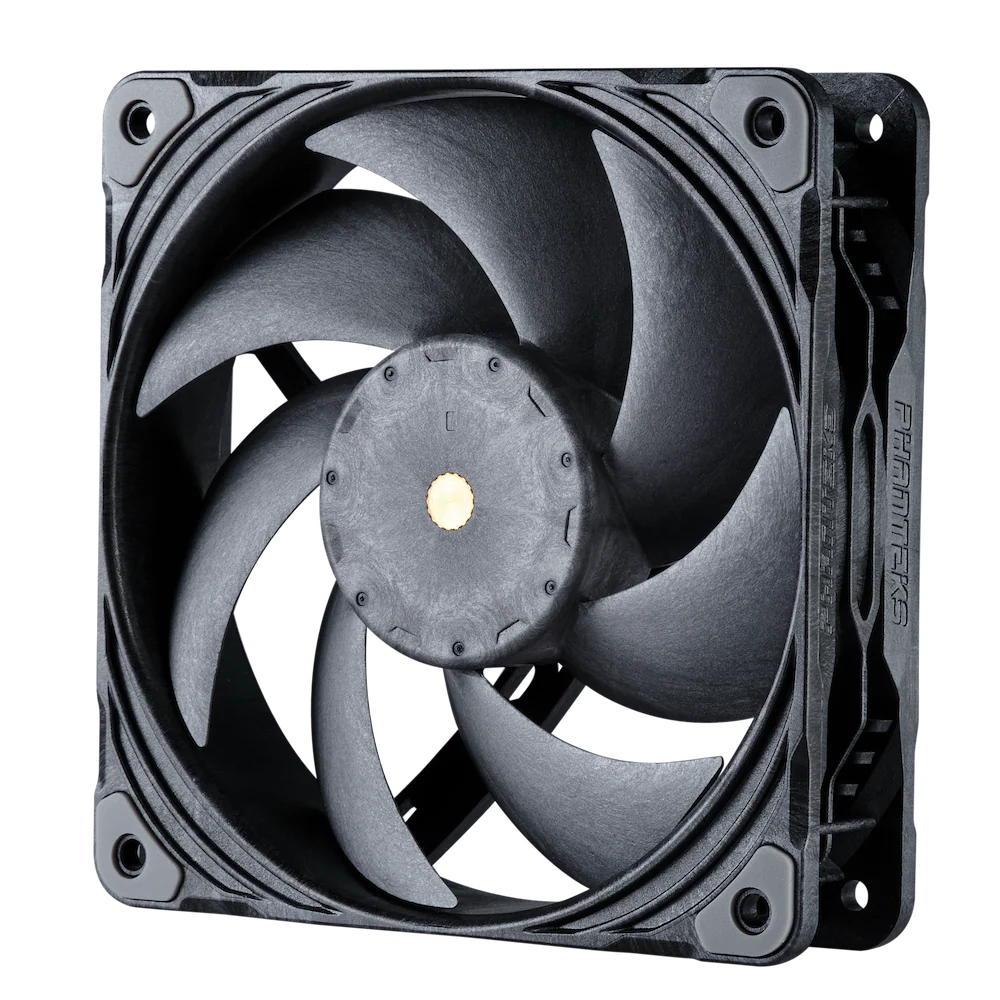

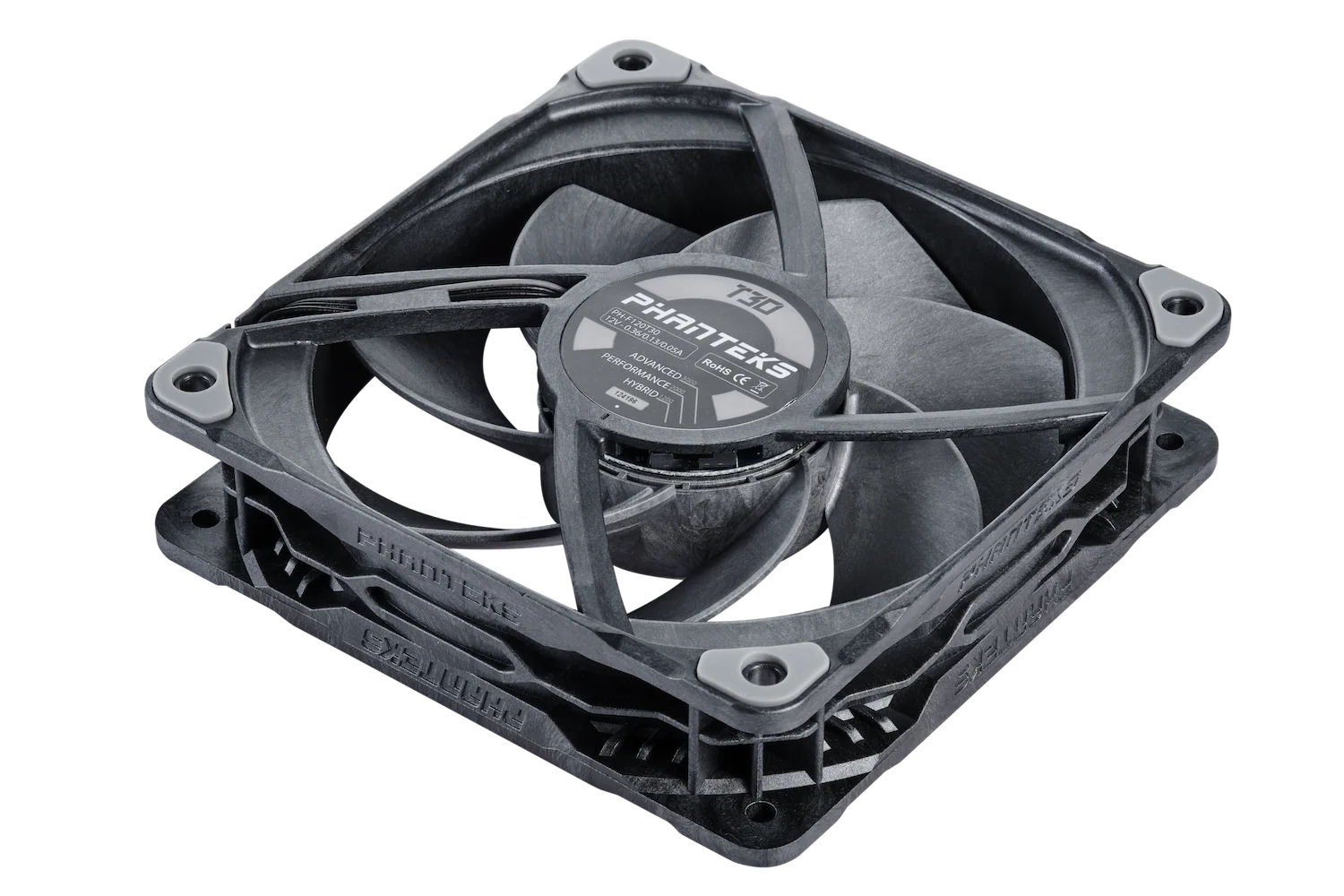

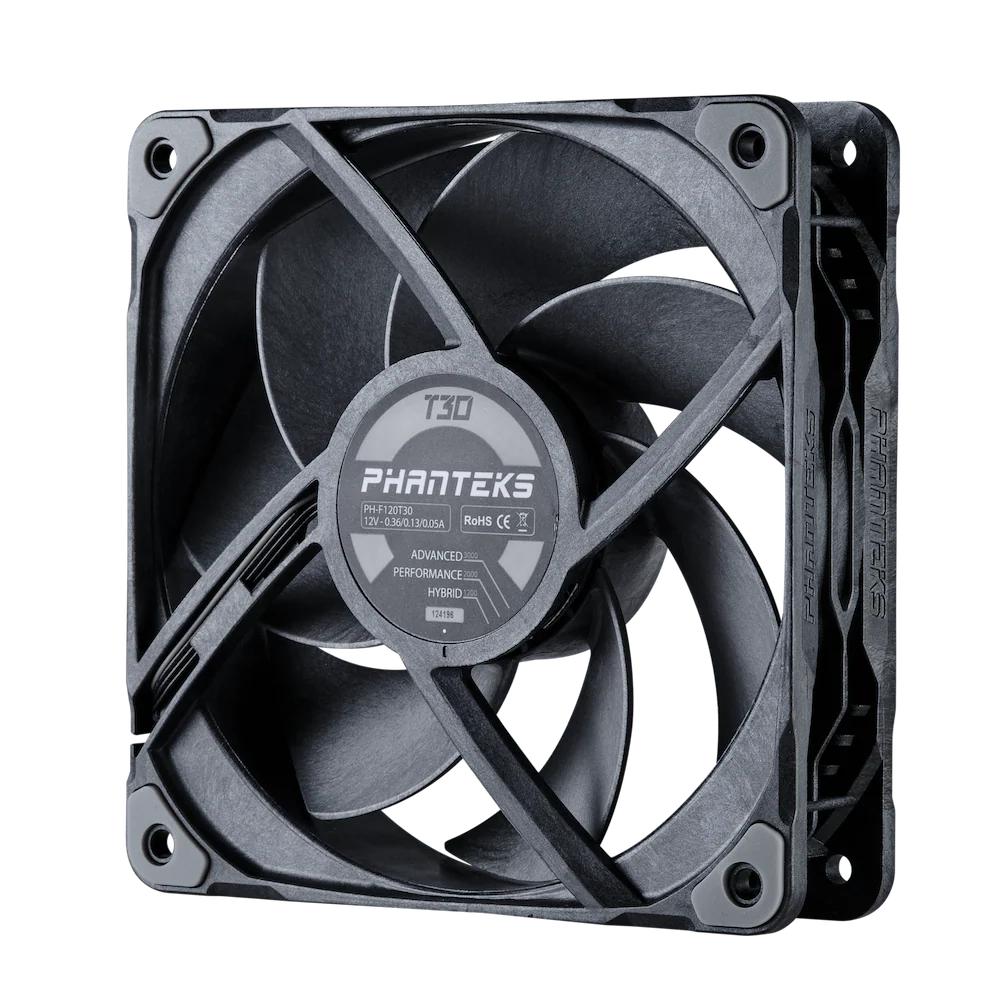

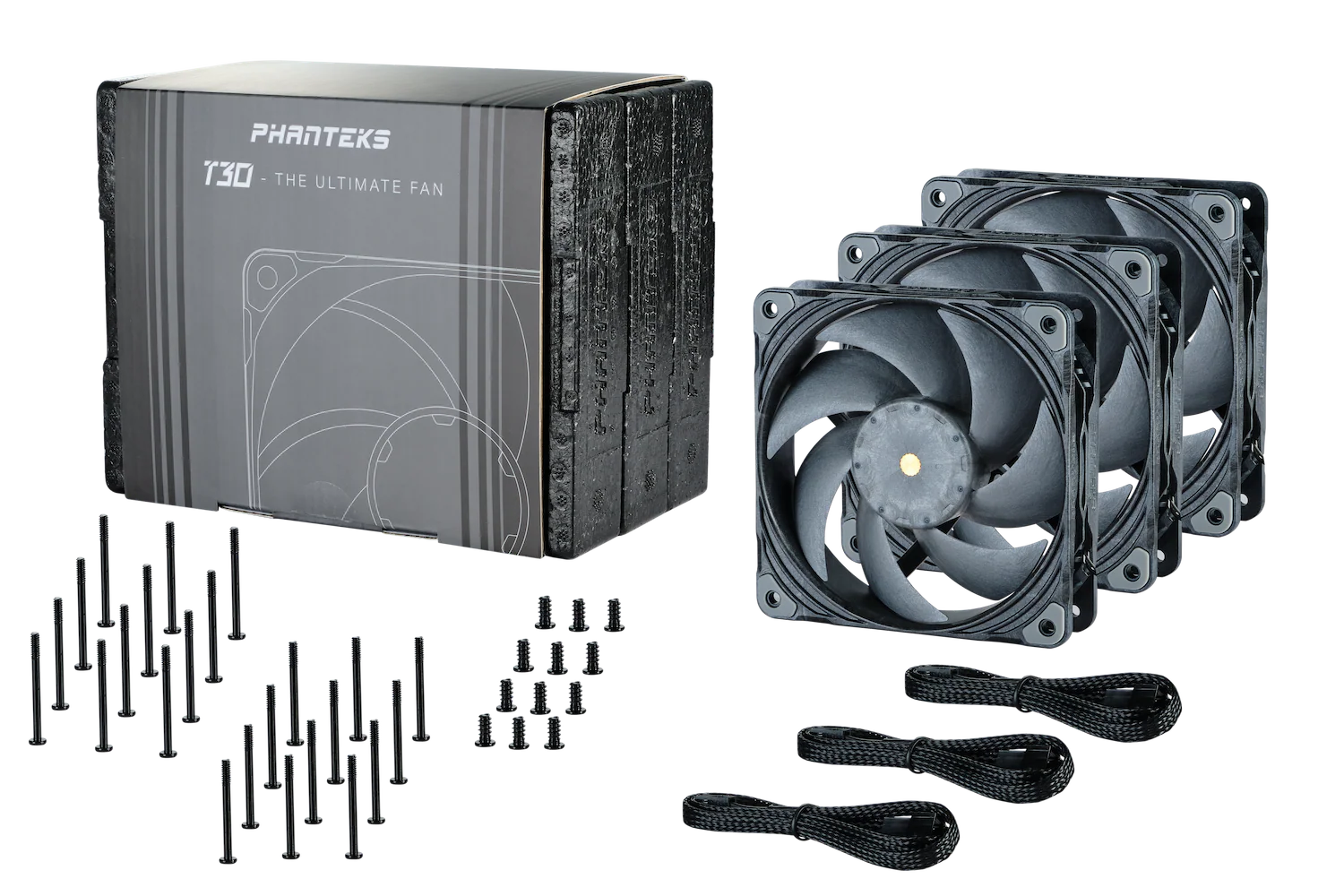

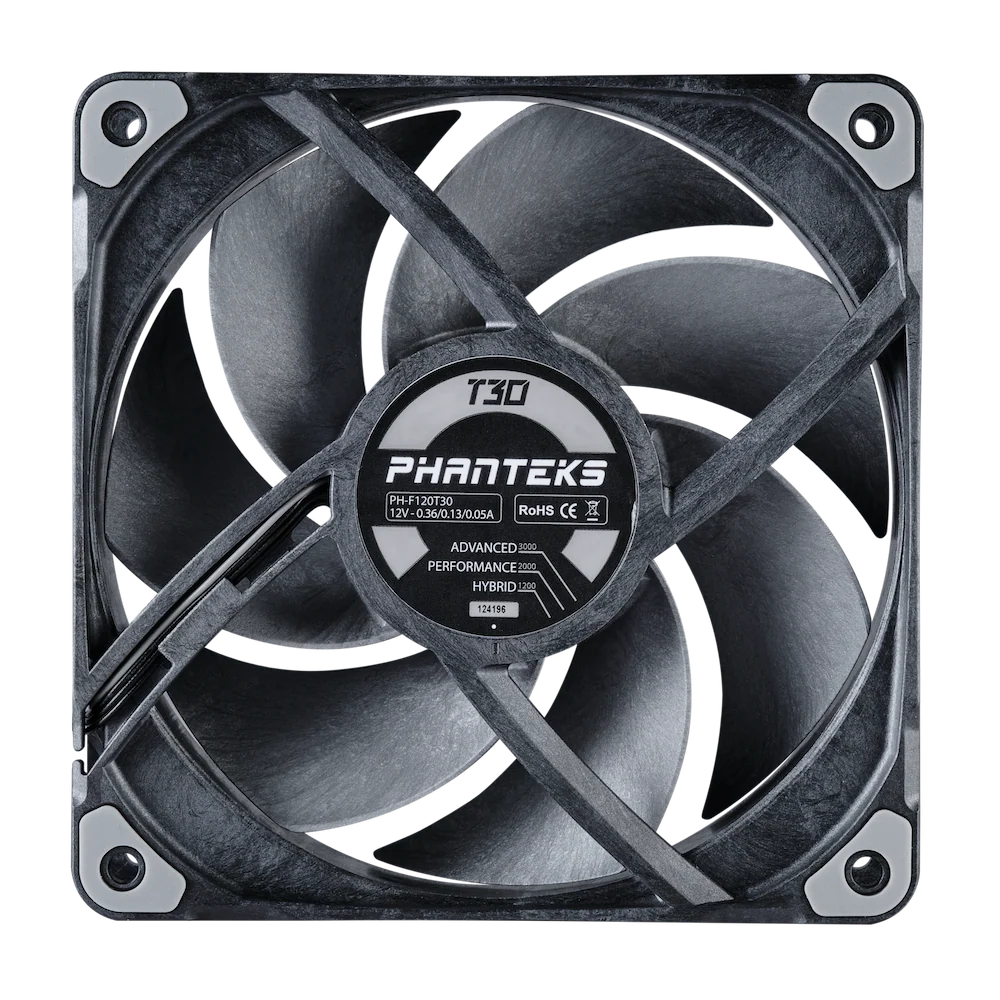

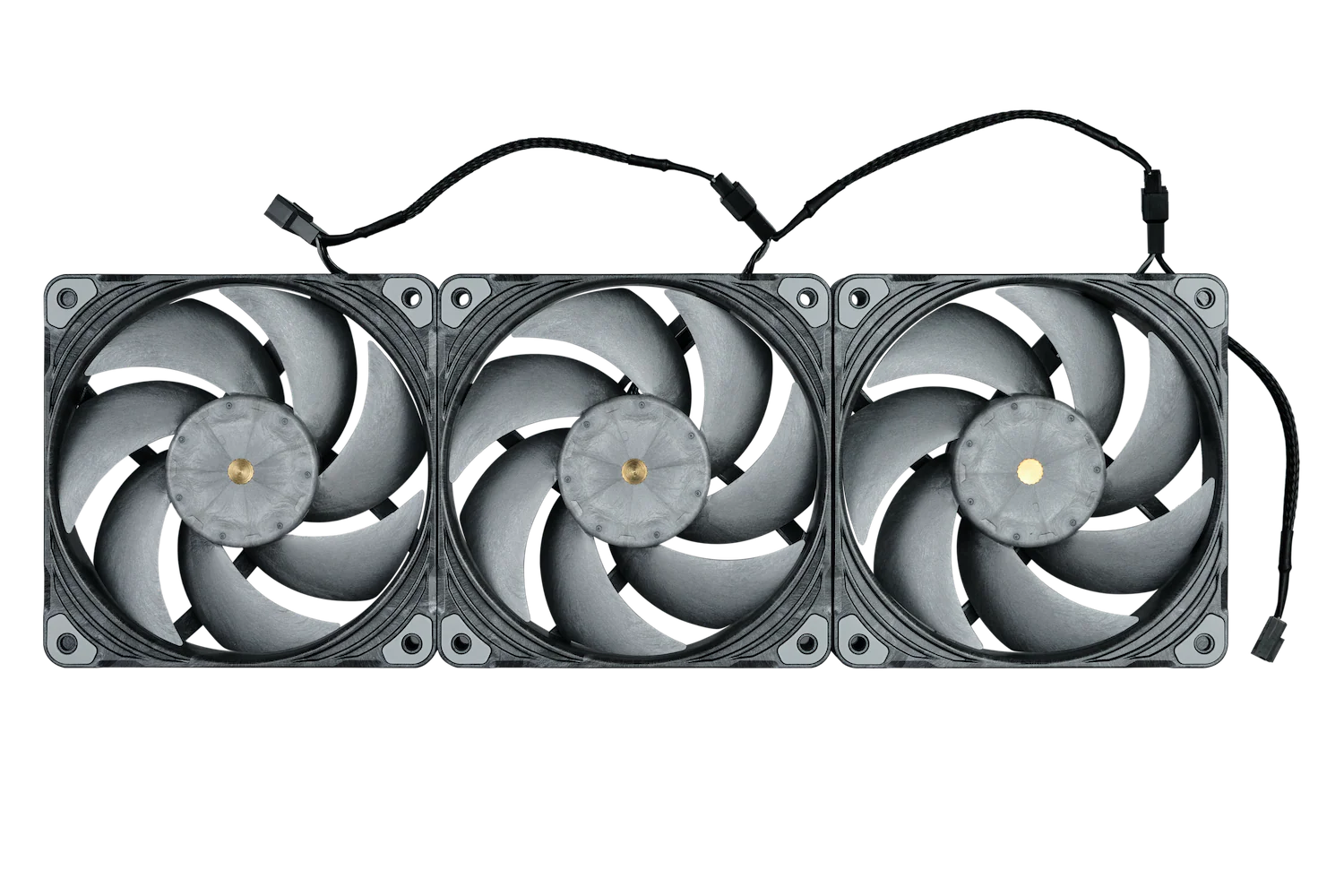

Phanteks T30-120 Fans
The Phanteks T30-120 fan has undergone years of development and extensive testing in close collaboration with SUNON, a leading fan manufacturer. Combined with Phanteks expertise in chassis and air/water cooler design, we created the ultimate PC cooling fan. The T30-120 features the best aerodynamic blade design, 30mm thick frame, and is made from quality industrial-grade components to achieve a perfect balance between high cooling performance, low noise operation, and excellent sound quality.
Both the fan blades and fan frame are made from the absolute best glass fiber reinforced LCP (Liquid Crystal Polymer) material. This makes the blades and frame extremely rigid and durable. The T30 is designed with exceptional aerodynamic features, which requires high precision manufacturing. LCP enables this thanks to its great material properties. The tip of the fan blade has a continuous and small clearance (0.5mm) to reduce turbulence and deliver unparalleled noise-normalized performance.
The Phanteks T30-120 features a unique 30mm fan frame that results in a 25% larger fan blade. Combined with the LCP material, 3-phase motor, magnetic levitated DUAL VAPO bearing and three PWM fan profiles, the T30-120 fan brings the best in silence, the best airflow performance and the best in high pressure for the PC market.
|
Fan Profile Specifications |
Advanced Mode |
Performance Mode |
Hybrid Mode |
|
Max Speed (RPM) |
3000 ±150 |
2000 ±100 |
1200 ±75 |
|
Max Airflow (CFM) |
101.0 |
67.0 |
39.1 |
|
Max Static Pressure (inch-H2O) |
0.28 |
0.13 |
0.05 |
|
Max Sound Level (dBA) |
39.7 |
27.3 |
11.1 |
|
Max Current (A) |
0.41 |
0.16 |
0.07 |
|
Max Power (W) |
4.32 |
1.58 |
0.55 |
Tags: 120mm fan, Ultimate fan, Best fan, Radiator fan, Computer fan, Case fan, silent, quiet, 30mm fan
